VSI Impact Crusher - Di Hai Machinery

VSI Sand Making Machine
VSI sand making machine is also called vertical shaft crusher, vertical shaft impact crusher, 5X sand making machine, fifth-generation sand making machine. It can make all kinds of rocks, sandstones, and river pebbles into construction sand with various particle sizes. The sand has uniform density and high compressive strength. It is far more suitable for construction than natural sand and sand produced by ordinary hammer sanders. Requirements to improve the quality of construction. The equipment has the characteristics of reliable performance, reasonable design, convenient operation and high work efficiency.
Get A Quote
Crusher Material
The VSI sand making machine is widely used in crushing and screening combined equipment in metallurgy, coal mine, beneficiation, artificial sand and gravel, construction waste recycling, building materials, chemical industry, abrasives and other industries.
Working Principle of VSI Impact Sand Making Machine

The VSI sand making machine uses high-speed running materials to crush each other by themselves. When the material enters the rotor and is thrown out after centrifugal acceleration, it collides and breaks with the surrounding guard plate. It can also be split through the bulk material tray. One part is scattered from the surroundings, and the other part enters the rotor and accelerates and rushes out to collide and friction with the scattered materials around. As the crushing progress, the small-particle materials gradually form a layer of material near the peripheral guard plate, which improves the crushing effect and protects the equipment. The finished materials that meet the specifications are discharged from the discharge port.
VSI Sand Making Machine
Processed Materials: Iron ore, copper ore, gold and silver ore, zinc ore, manganese ore, limestone, granite, basalt, river stone, quartz.
Applications: Mechanism sand, bituminous concrete, metal mine, aggregates shaping.
Parameter of VSI Sand Making Machine
If you want more parameters or don’t know how to choose parameters, contact us.
Cases & Solutions
If you want to know about our pricing and delivery, Di Hai is happy to give you a configuration table with a quotation.

RFQ of Sand Making Machine
Q: How is the sand coming out of the sand-making machine?
A: The sand has good grain shape, low needle-flaky content, no cracks, fine lines, no segregation of coarse and fine particles, and adjustable fineness modulus. It can be used as fine sand to be applied to concrete, basic construction, and transportation with strength grades of C60 and below.
Q: Does the rotor of the sand making machine rotate clockwise or counterclockwise?
A: The rotor of the sand making machine is reversed.
Q: Is it possible to make dry sand or wet sand?
A: Dry sand making by its own sand making, but it can be cleaned in conjunction with a sand washer to improve the clarity of the sand.
RFQ of Sand Making Machine
Q: What is the reason why sand powder comes out from the outlet of the sand making machine?
A: It may be because the processed stone does not match the equipment model. Generally, if the impact-type sand making machine sand is used for brittle materials, a large amount of dust is easy to be mixed in the sand.
Q: How can I increase the sand forming rate of the sand making machine?
A: It is recommended to start from these four aspects: choose a suitable model of sand making machine, reasonable feeding properties, reasonable feeding speed and reasonable maintenance measures.
Contact us
7*24 hours for your online service
300 meters Northeast Corner of Zhengshang Road and Zhiji Road, Zhengzhou, Henan, China.
+86 15890626237
+86 15890626237
manager@dihaimix.com
Name

Email

WhataApp

Massage

Comment
Application Field
VSI sand making machines are currently widely used in quarries, mining manufacturing, building materials, highways, railways, water conservancy and chemical engineering, construction waste treatment, and other industries to crush various ores and bulk materials.
VSI Impact Sand Making Machine
VSI sand making machine is widely used for fine crusher and coarse grinding of metal and non metal ores, cement, refractory material, grinding material, glass raw material, building aggregates, artificial sand and all kinds of metallurgical slags. It is especially suitable for medium hardness materials, high hardness materials and corrosion resistance materials, such as carborundum, emery, magnesia etc.
application of vsi sand making machine

Advanced double-pump oil lubrication system guarantee shaft bearing lower temperature increase, longer life time, more reliable operation.
Main shaft is equipped with an imported precision rolling bearing. It makes main shaft work stable, lengthen maintenance cycle, increases productivity.
Hydraulic lifting mechanism of upper cover can move away the cover easily, which saves man power during maintenance.
Over-vibration device is equipped. There will be alarm when vibration surpasses a stipulated figure. It will stop the machine, in order to protect it.
Special dust-proof design for main shaft bearing fully avoids dust entering bearing lubrication part, which makes sure the machine work normally.
Special feed opening structure makes it possible that center feeding and ring feeding comes together, in order to meet requirement of different stones. In addition, this equipment can not only crush stone, but also iron.
Shape of material-through device is better designed, which improves the utilization ratio.

VSI sand making machine is widely used for fine crusher and coarse grinding of metal and non metal ores, cement, refractory material, grinding material, glass raw material, building aggregates, artificial sand and all kinds of metallurgical slags. It is especially suitable for medium hardness materials, high hardness materials and corrosion resistance materials, such as carborundum, emery, magnesia etc.

Get A Quotation

1. Center Feeding:
1)Raw material falls down into feed hopper,
2)Then enters impeller through central entrance hole. It is accelerated in highly speed impeller,
3)Then is thrown out at speed of 60-75m/s.
4)When hitting impact plate, it is crushed.
5)Final products come downwards though outlet.
2. Ring Feeding:
1)Raw material falls down into feed hopper,
2)Then through ring, it is divided into two parts by material-dividing plate.
3)One enters into impeller through the center of material-dividing plate.
4)The other falls down from outside of material-dividing plate.
5)Material, which is thrown out by impeller at speed of 60-75m/s, hits material coming down from outside of material-dividing plate. In this way, material is crushed.

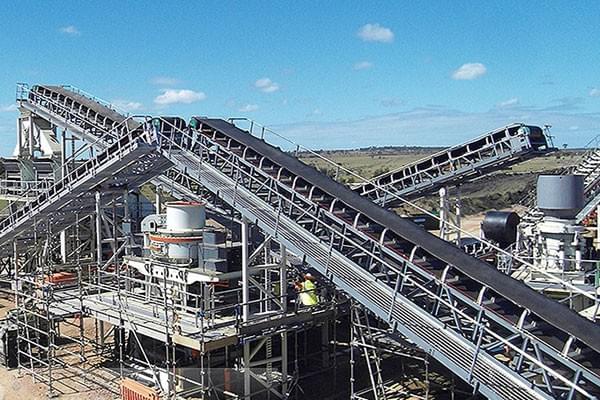

success cases of sand making machine
Here to show you our success stories, if you want to know more, please contact us
