Grinding Mill Production Line
This Micro Powder Grinding Mill has commonly used grinding equipment, mainly used for grinding barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate ore, gypsum, glass, insulation materials and other materials with Mohs hardness, not more than 7 degrees and humidity below 6% in mineral, chemical, construction, and other industries. The final size of finished products can be adjusted within 60-325 meshes.
- Customizable, We offer customized service according to your requirement.
- Field installation, commissioning and training, Engineers available to service machinery overseas.
- All after-sale service problems will be solved in 72 hours.
- 18 months warranty.
Remark:
1. The Milling System includes mainframe, separator, blower, cyclone collector, bag filter, connecting pipes, motors(AC 380V, 50Hz).
2. One set of equipment needs: 1x 40GP Container.
3. Special Motor need to be customized, please inform.
Advantages of Raymond mill
1.High Efficiency
Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2.Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite.
3.High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4.High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
Advantages of high-pressure Raymond mill

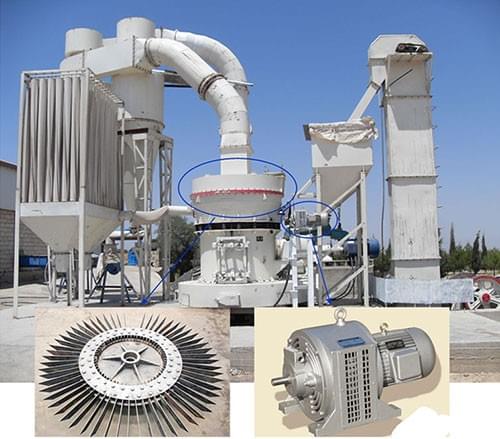

Advantage 1: Blade seperator and speed regulationg motor
Blade analyzer is adapted to analyze the powder of 0-425 mesh effectively.
High quality speed regulating motor is adopted to adjust the rotation speed of the analyzer, and the output size also can be adjusted accordingly.
The variable frequency motor also can be used.

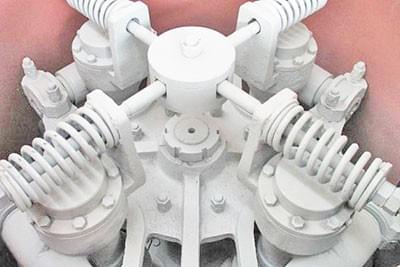

Advantage 2: High-pressure spring device
Comparing with the Raymond mill, this grinder is assembled with a pressurized spring to improve the mill's efficiency.
Its capacity increases by 10%-20% under the same power condition, and the compression force of rollers to material improve 800-1200kg under the force of high-pressure spring.
Advantage 3: Environment friendly

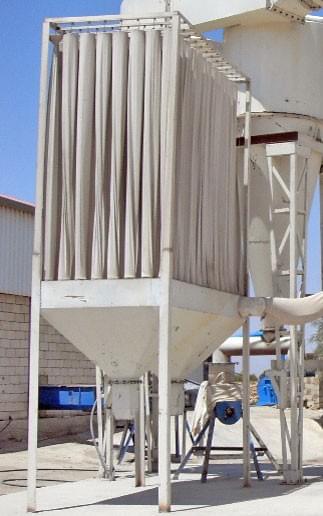

In order to protect the environment, we adopt the bag filler, it can well separate the ash from the air after cyclon.
Customers can also choose a pulse bag filter.Make Your Own Section!
High pressure hanging roller mill for crushing barite, limestone, ceramic, slag and other Mohs hardness of not more than 9.3, humidity below 6% of non-flammable and explosive mines, metallurgy, chemicals, building materials and other industries more than 280 High-fine powder processing materials, finished grain size adjustment in the range of 80-425 head (the smallest 1000 mesh).

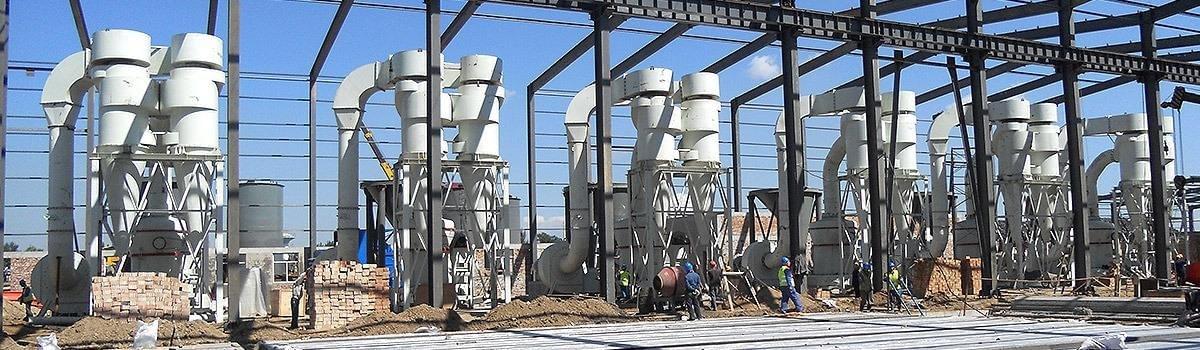

working site of high pressure Raymond mill
