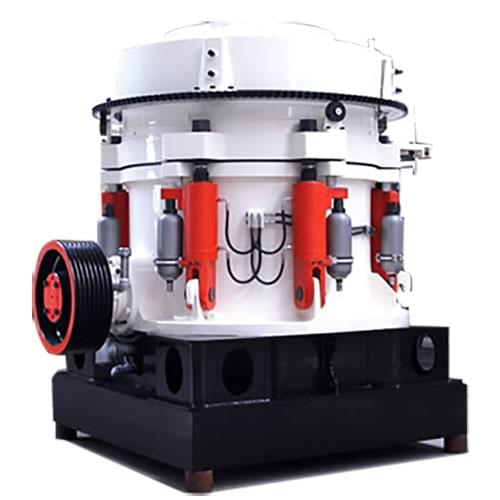

hydraulic cone crusher
- Feed size: 35-300mm
- Production capacity: 40-700t/h
- Processing materials: limestone, granite, river pebble, dolomite, bluestone, iron ore and other rocks and ores.
- Simple structure and High-efficiency low energy consumption
- Diversity crushing chamber types
- Special sales form and easy operation
- Overload protection and easy maintenance

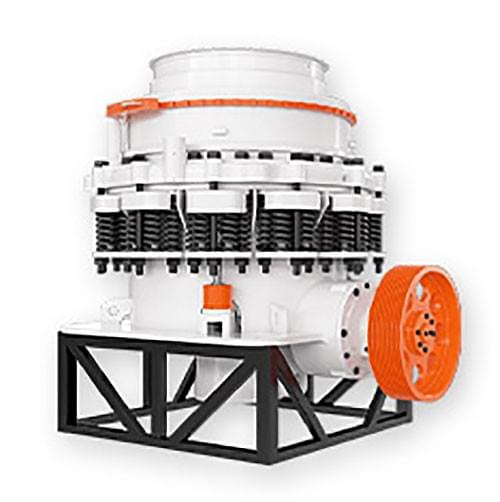

Spring cone crusher
- Feed size: 65-100mm
- Production capacity: 40-200t/h
- Processing materials: limestone, granite, river pebble, dolomite, bluestone, iron ore, rock, etc.
- High capacity and superior quality;
- Long working life of quick-wear parts, and low investment;
- Dilute petrol stations for continuous lubrication to reduce downtime and maintenance time;
- Spring Cone Crusher is easy to maintain, reduces downtime and maintenance costs.

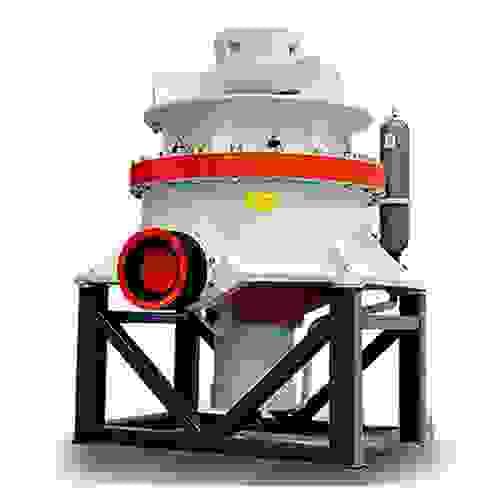

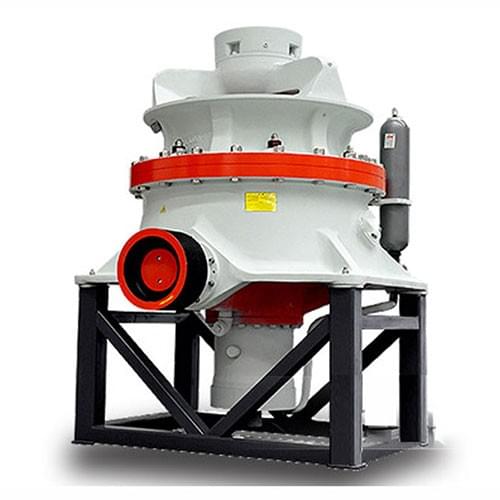

single hydraulic cone crusher
- Feed size: ≤ 560mm
- Production capacity: 30-2181t/h
- Processing materials: river pebble, granite, basalt, iron ore, limestone, quartz stone, diabase, iron ore, gold ore, copper ore, etc.
- The single-cylinder cone crusher is also quite special in terms of structure.
- It is usually composed of upper frame body, middle frame body (medium crush type), lower frame body, moving cone part, eccentric sleeve part, transmission part, hydraulic cylinder part and other components.

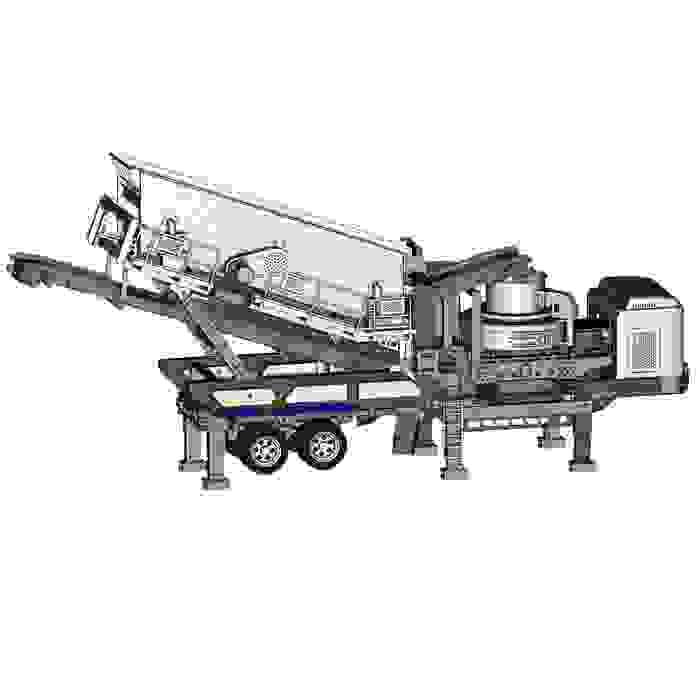

Mobile cone Crushing Plant
- The mobile crushing station can be matched with multiple types of crushers. Different crushers have different outputs and different models.
- Our mobile crushing plant models are very complete, and sales are also very good.
- It can be used in a small site, the material is not fixed, the construction is fast and the movement is convenient. The crusher is installed on a trailer to form a crushing station.
- Generally, a mobile screening device is required. Otherwise, the purpose of discharging and grading cannot be achieved without screening.
Working principle

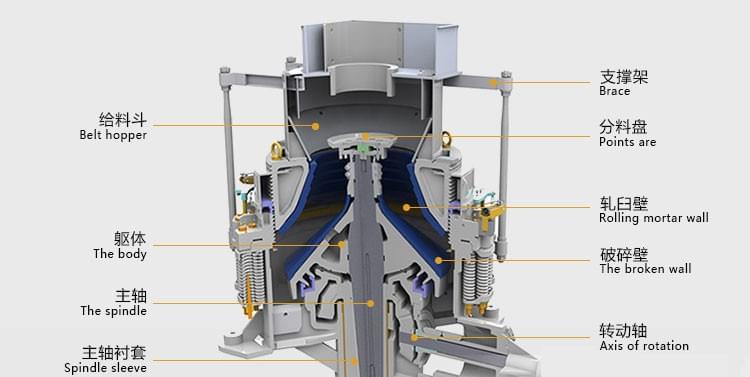

Cone crusher consists of frame, transmission device( countershaft, countershaft bushing, gear and pinion), main shaft, eccentric shaft, cone, mantle, bowl-shaped bearing, springs and hydraulic pressure station for adjusting discharge opening.
Transmission device: Countershaft assembly is supported by the bronze countershaft bushings, which can be dismounted for the convenience of maintenance. And the gear and pinion with high strength and high precision are adopted to ensure the reliable operation of equipment.
Main shaft: Forged from hardened and tempered chrome molybdenum steel particularly large diameter to suit the wear-resisting application. A high-quality copper socket liner can bear the high crushing load and allows the machine to work under rigorous conditions.
Cone and mantle plate, high manganese steel casting, hydraulic lock device is convenient and reliable.
Spring and hydraulic device: Convenient for adjusting the discharge size, can remove the foreign materials if non-crushable objects came into the crushing chamber.

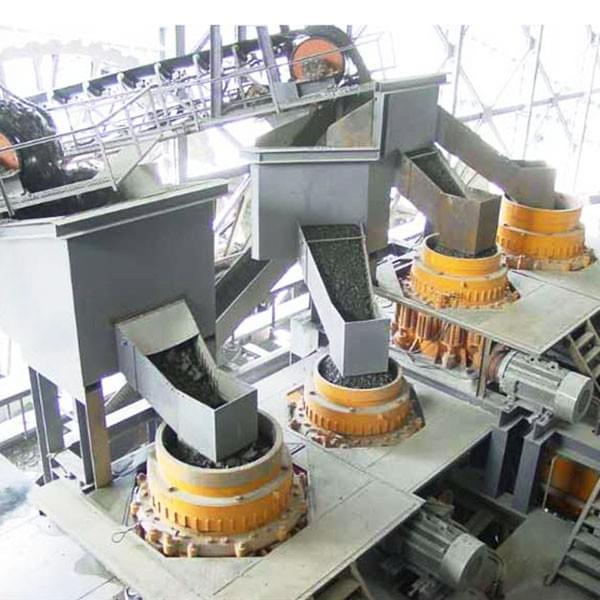

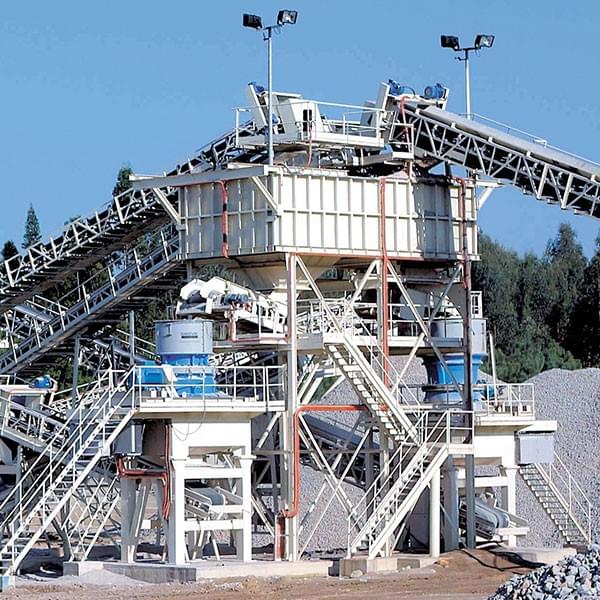

working site of cone crusher
Pictures of cone crusher are displayed on site
It's applicable in crushing various hardness ores or rocks. The crushers are grouped into 3 types, Coarse, medium, and fine types. The coarse type is used for medium crushing, medium for medium and fine crushing, fine for fine crushing
